Self-supporting Energy Cable Na2XSA2Y-S 3×70 mm2 for 10KV AIR NETWORKS

Description

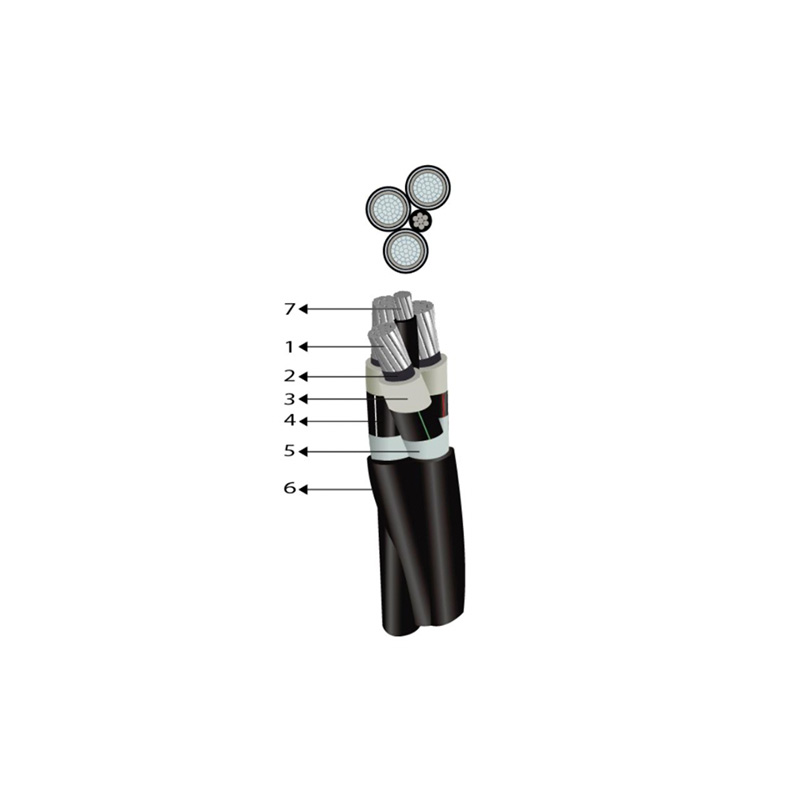

Self-supporting Energy Cable type Na2XSA2Y-S 3×70 mm2 section, pure aluminum main conductor with compact concentric wiring of circular section, with semiconductor screen on the conductor and on isolation, reticulated polyethylene insulation (XLPE), metallic yarns Aluminum on the second semiconductor, thermal polyester barrier, outer cover of thermoplastic polyethylene color smoke, EO / EO = 8.7 / 15kV design tension. Used in aerial networks of the 10KV Media Tension Distribution System. Other technical characteristics according to specification. Ref Ref. Standard: LD-7-005
